So,re-located the Oilcooler a 3rd but last Time,got 8 mm clearance to fairing and Engine.Yet i've been smarter ,made the brackets from Alu,but before i made the cuttings i made a Glassfiber copymould,so i'll be able to built them in Carbon now for definitive fixing of Oilcooler !I know Oillines lenght now ,Angle of fittings-if you want the info,contact me.Here the details of provisional Alu-Brackets:

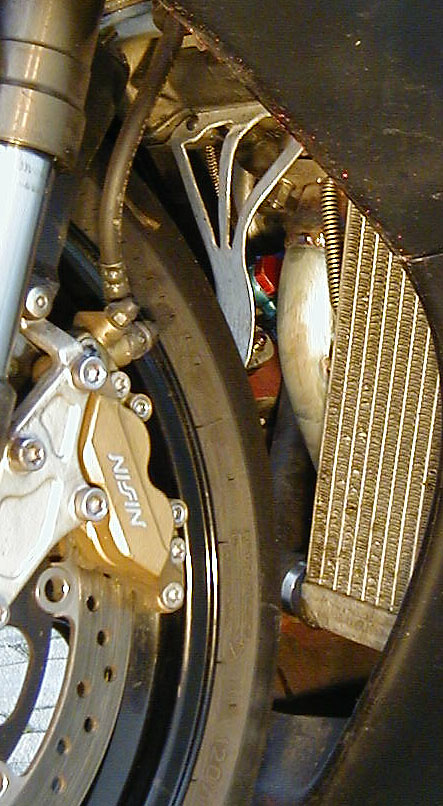

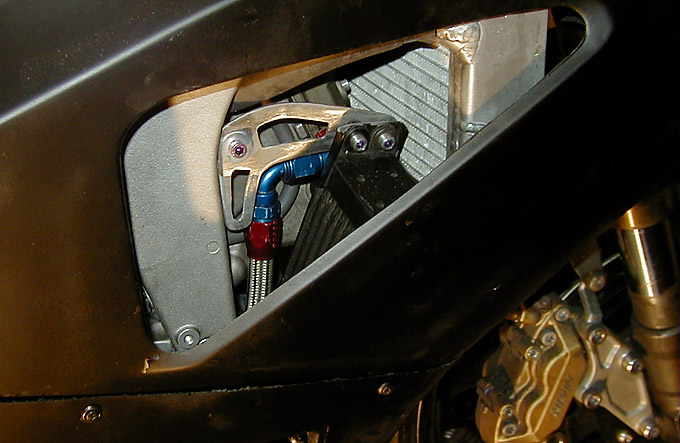

                   !RC51-workshop Pics re-location Oilcooler.JPG (91464 Byte)                         !RC51-workshop Pics re-location Oilcooler2.JPG (124914 Byte)

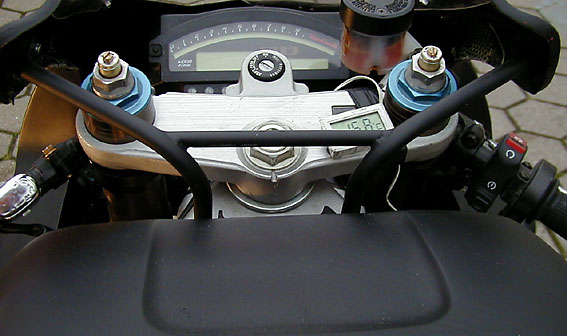

The top holder for HRC-fairing:  200gr-stainless steel :         !RC51-Outside Pics detail Frontholder.JPG (49420 Byte)

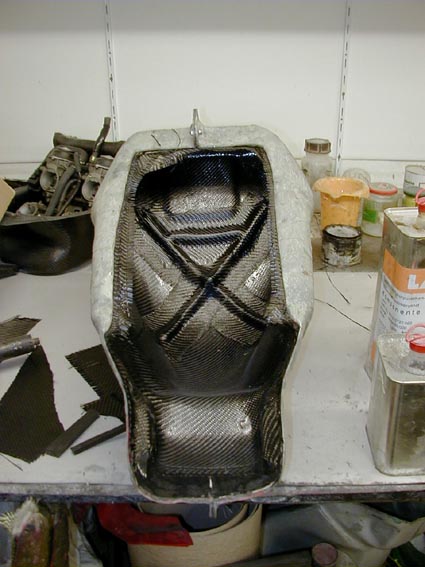

Here's the fueltank-dummy inside mould,you see the crossing reinforment rips-very efficient.Even if the dummy is only 2 lbs you can stay on it,means you can put a load of maybe 180 lbs without a movement of the top-seems to be the secret why the Bike has nearly no intake-noise when you wind throttle.



inside Dummy.jpg (52605 Byte)



Here a bendability-demo of my Glassfiber-fairing:    1         bendabiliy demo1.JPG (60045 Byte)





                                                                               2        bendabiliy demo2.JPG (90165 Byte)



The Airbox Filter Solution i ride now : a oiled foam+ grating,works very well:      Airbox-filter.jpg (85329 Byte)



Thats what you've to do to ride my fueltank assembly,grind down the valve-chamber of emission-cleaning System,it's important to get some Space for Air-circulation,easydone:

         Pic1         !RC51-workshop Pics detail mod camcover.JPG (60556 Byte)                        Pic2          !RC51-workshop Pics detail mod camcover2.JPG (89986 Byte)
