Some boring weight info and Pics:made sometime,somewhere :click to enlarge ,if you want

left and right fairing: each 1.25 kg ,front fairing incl.lights and windshield3.6 kg,each can 5 kg , headers 3.3 kg , rear rim cpl 10.3 kg , front rim 4.5kg,
Fuel Tank 6.5kg, each calip 1.18kg , each Brake disc 1.6 kg(ok),the std,naked Subframe 2.2kg ,shock 3.3 kg(0.6 kg to much),
front fairing incl lights:  much to heavy !,tailsection weight:ok.............
Snorkel incl.flapper valve+ underpressure can ,hoses and Air-quietening box: 800gr

subframe incl.Battery-ECU-rectifier -rest wire-underplastic :11.3 kg

                                   stock Engine: 72 kg ,ok      Engine Weight.JPG (52838 Byte)

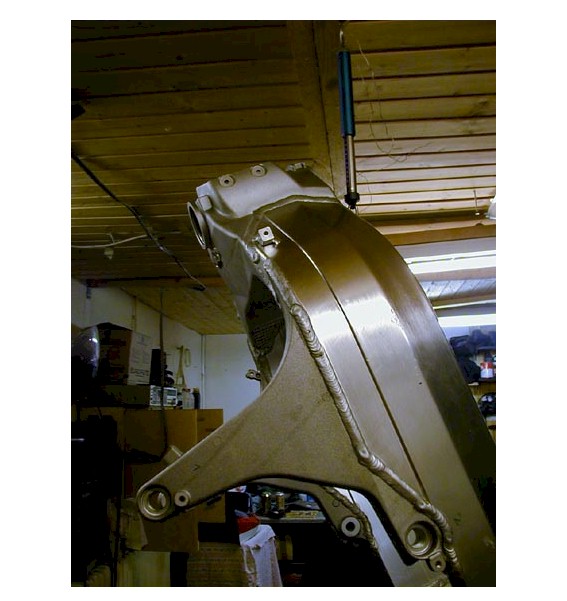

Frame Weight 3.JPG (59369 Byte)       stock Frame:12 kg,cannot believe it

                            Fork incl triple Clamps :10.45 kg,thats ok.Fork Weight1.JPG (60784 Byte)

Swingarm Weight.JPG (47759 Byte) Swingarm incl.Shock 11.2 kg,hm.

The Clutch: 4.25 kg ,ok.a clutch projects beginning3.JPG (52707 Byte)
