Hey,finished the Snorkel,about 5 days work.

                 A combined Item,ready to take the Headlights and the digital Cockpit also.

                 300gr,means about 0.66 lbs,much to heavy and some flaws ,but for first Item it's ok.

                 Next Snorkel i guess is about 0.4 lbs-thats my objective-no Problem !

                 Here are first Pics from Model work,also first finished Carbon Snorkel.







                Regards

                Thorsten

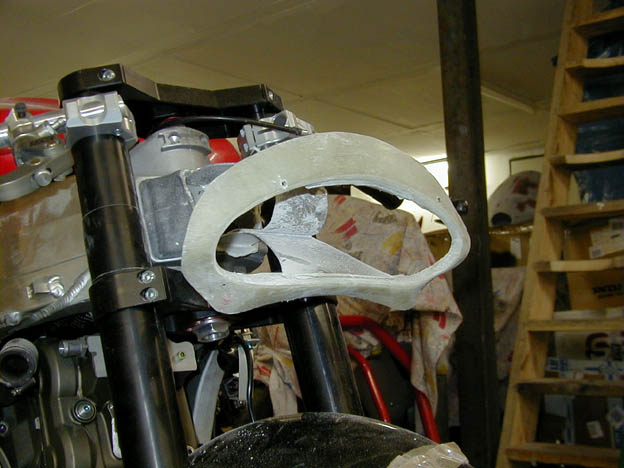

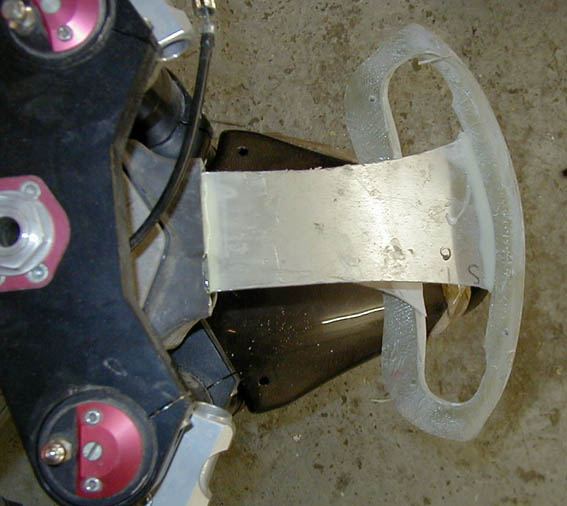

                Whereitallbegan: copyed the st. Snorkel rear end,made a  mould of my fairings mouth and glued all with
                Alloy profiles.

Snorkel 4.JPG (53911 Byte)                         Snorkel 3.JPG (49696 Byte)

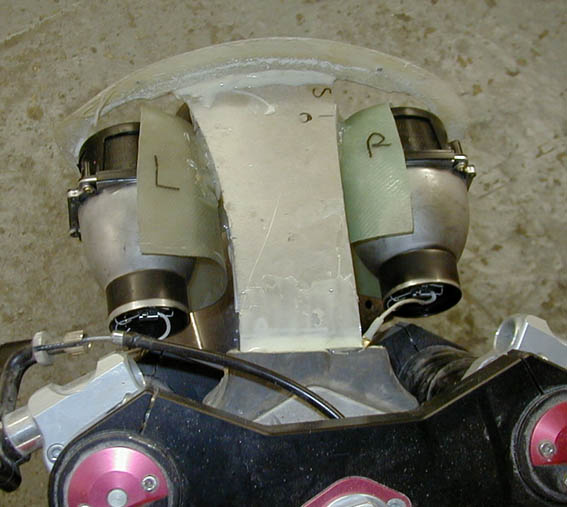

                Then i'd to glue the headlight holders in the right road-use angle (4 cm each m down)

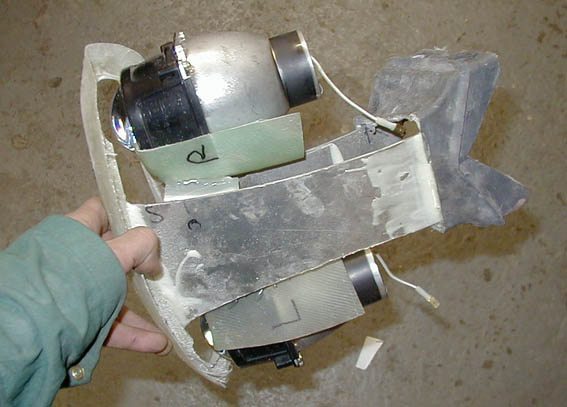

 Snorkel 8.JPG (51133 Byte)                      Snorkel 7.JPG (40975 Byte)                   Snorkel 5.JPG (46380 Byte)



Took some foam to fill out all

Snorkel 6.JPG (51876 Byte)                                    Snorkel 9.JPG (38649 Byte)

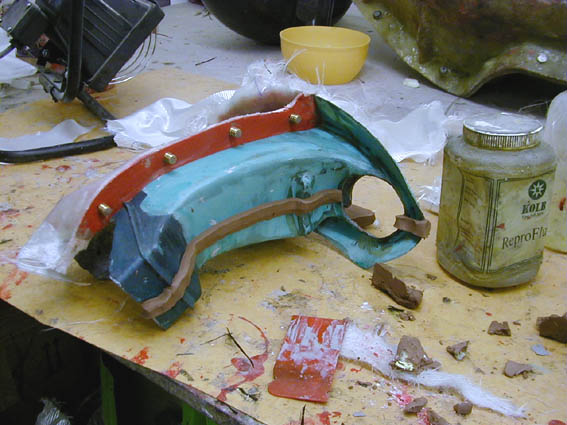

The mould (Part1 of 4)

Snorkel 1.JPG (57418 Byte)

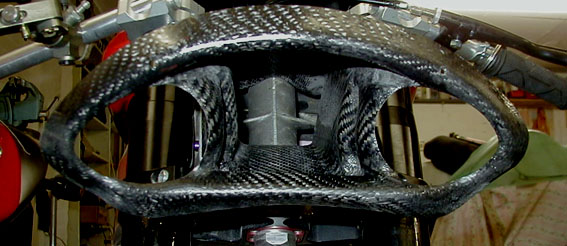

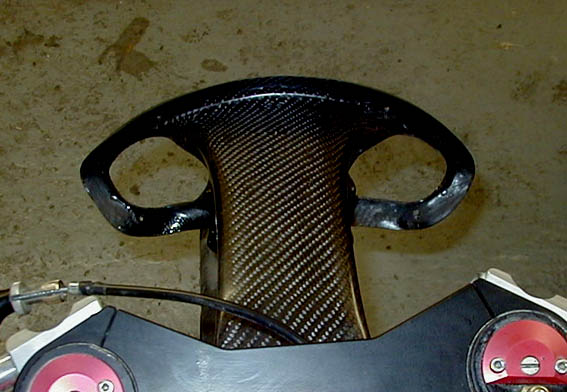

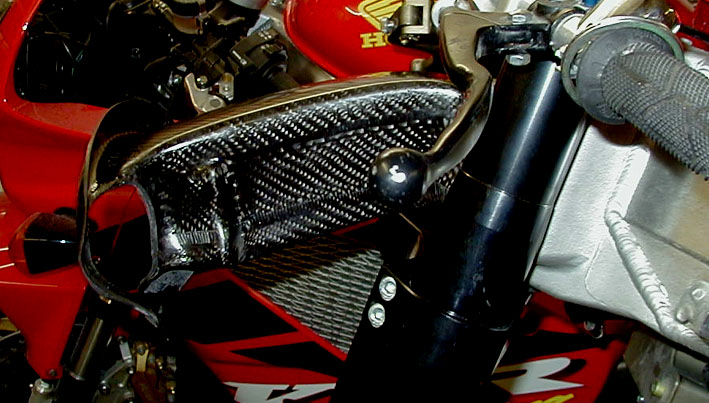

The Carbon Snorkel



Snorkel  Carbon 1.JPG (48171 Byte)                  Snorkel  Carbon 2.JPG (50963 Byte)                  Snorkel  Carbon 3.JPG (90335 Byte)
