The latest Pics September 06. i made of the Oilcooler-location.



This is the definitive location now



!RC51-workshop Pics re-location Oilcooler.JPG (91464 Byte)                         !RC51-workshop Pics re-location Oilcooler2.JPG (124914 Byte)



For more Pics :hybrid sections or wait a while,i'll add more detail Pics soon.



Where the std Oil-Cooler is located you create space for upper Rad,so your Oil-Cooler hikes to the  right front side.

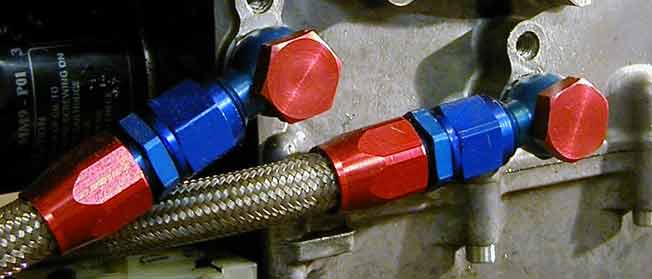

There's the HRC Option or you manufacture this Solution yourself,take this usual Oil Lines,fittings as on the pics,drill a M14x1.5 thread into the Engine:

























.



...then manufacture some holder,have a look for some fix-points.Use dash 8,means 10 mm diameter   lines and fittings.



If you're looking for a cpl.pre-mounted Cooler -kit incl thread-drills and so on : mailto: Oilcoolerrc51@durbahn.de
