started production of Carbon tubes 100 and 110 mm diameter.

              The cpl.custom Titan exhaust system incl.100 or 110 mm Cans is about 2000 $.

              same in Stainless steel 1700 $..



              Some new Pics on the block:Cans incl. Clamps:

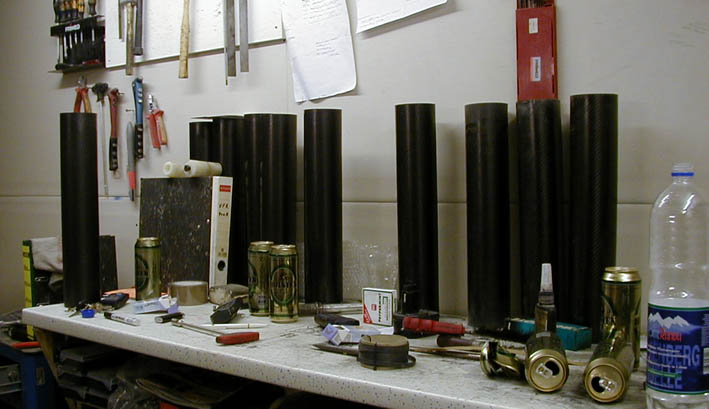

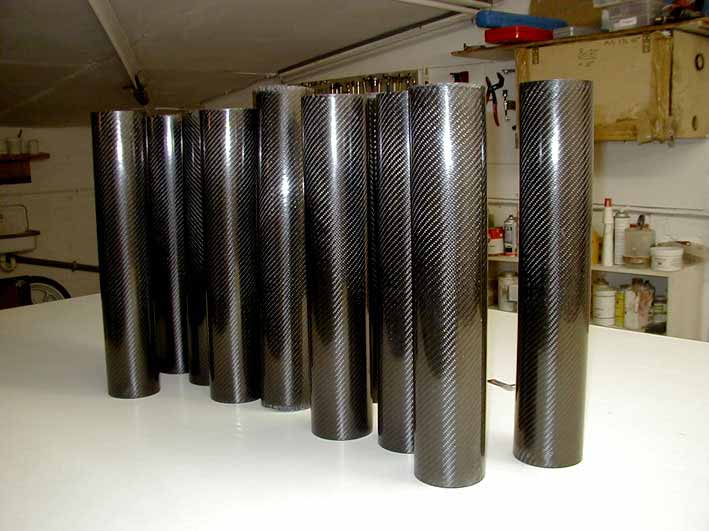

             Some Can production Pics    a carbon tube 4.JPG (51262 Byte)

...............ok,you need some Beer for this work.

        Detail Pix:   "8"  Clamp:









similar to pictured  Carbon can detail i'll manufacture about

90-100mm diameter Cans 2right Side.Whole weight of both

incl.Clamp is from 2.35 kg(5.18 pounds/90mm) to 2.8 kg

(6.18 pounds/100mm).Guess the Ti-headers weight about

1.8 kg (3.9 Pounds),so all in all  :max 4.6 kg ( 10.1 pounds)

 Thats 8.4kg(18.4 pounds) less.





January (i hope) i can show first pics of cpl.system.

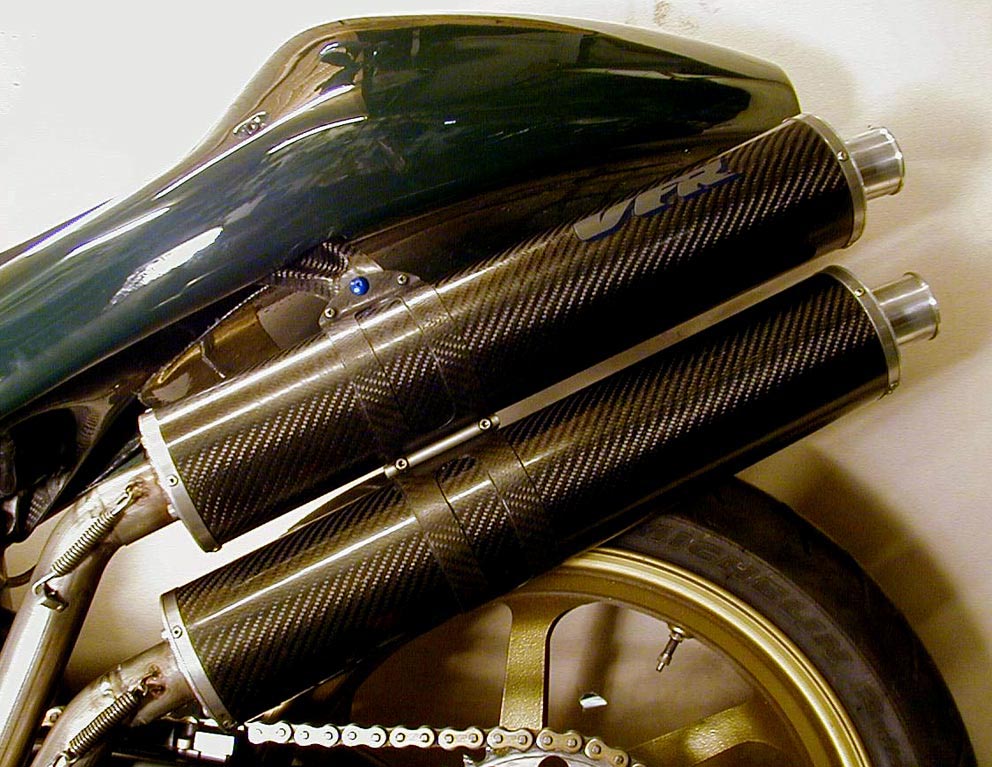

Here an xample from RC30:click to enlarge         Carbon-Endtöpfe.jpg (166134 Byte)

Ti Headers
