The Titan-Edition !









pics availalable:now

I prefer two right side cans,we'll see.............

Ok-now first pics of Prototype stainless steel Pipes.

3 days it took!Based upon stock Pipes-only to have a look.

500 -1000 gr less vs stock.

Exhaust2 pointed.jpg (45002 Byte)

Tommorow(26.Jan) i'll start with the Titan Edition !

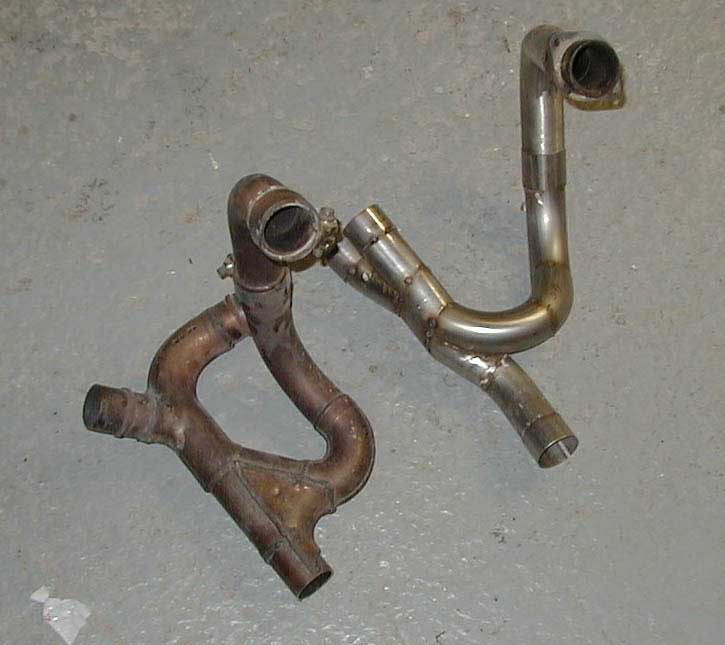

stock vs.1st prototype 2in1in2-conduction

!First pipes4.jpg (44667 Byte)



Only pointed:the welding Job will be done by someone in the Aircraft Industry

 click to enlarge

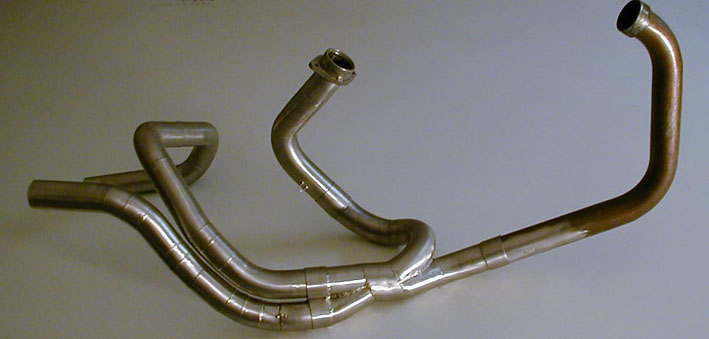

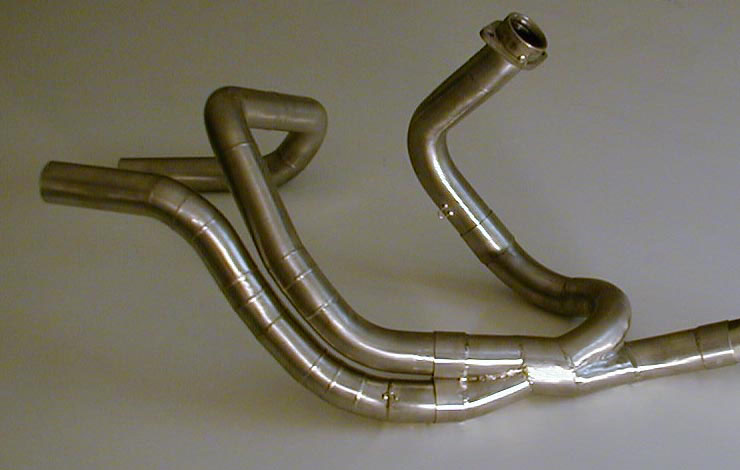

Sow:now welded:                   Exhaust6.jpg (38205 Byte)





Conduction details

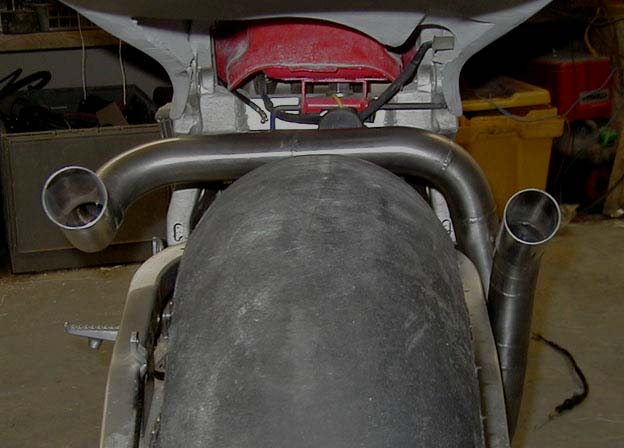

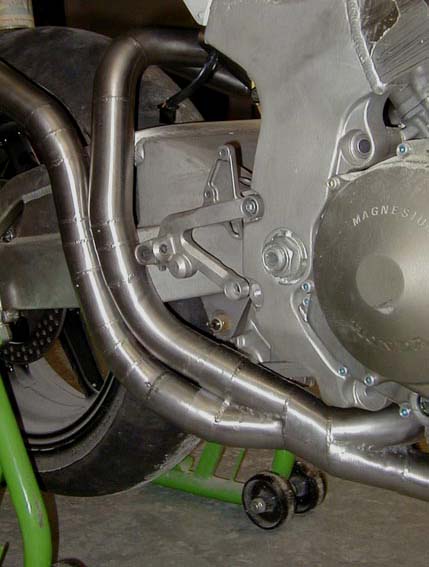

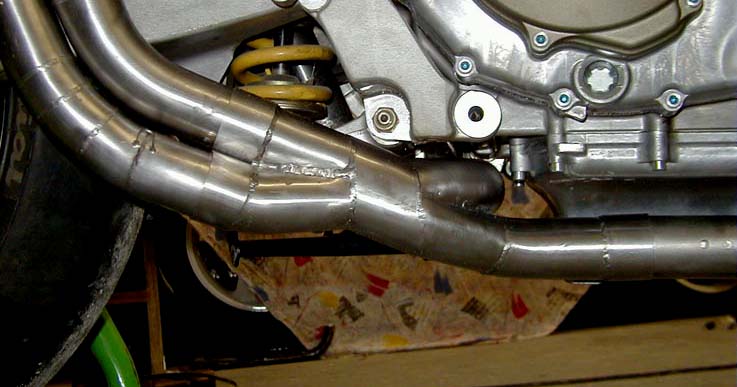

Exhaust5.jpg (41927 Byte)       Exhaust1.jpg (41680 Byte)        Exhaust10 Conduction Details.jpg (36987 Byte)         Exhaust4.jpg (51377 Byte)




Well,some more Pics now-finshed the ti pipes(headers?):30.Jan.01

what do you think?Ok-very cramped matter,the header -  swingarm conduction,but i'll work.

2 mm clearance should be enough,some space for feet.





I'm very excited for the weight,havn't had the Time to measure it .

Monday welding-monday evening i've got the System back.

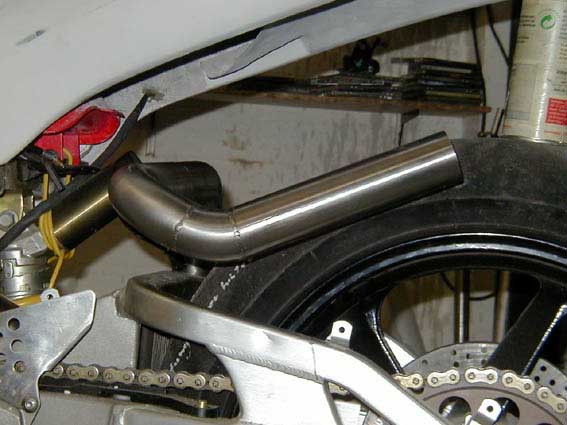

My Exhaust !! Right side Cans !

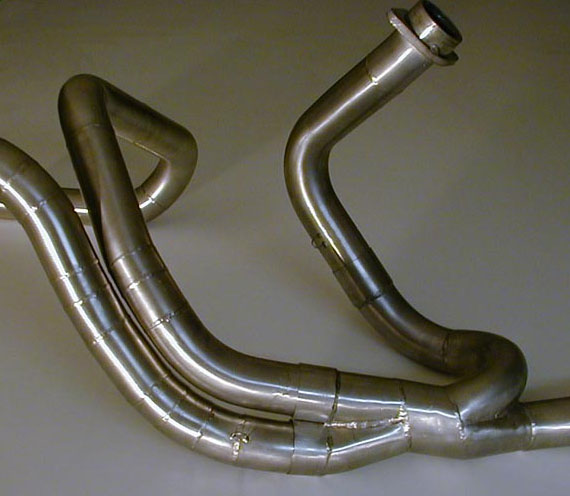

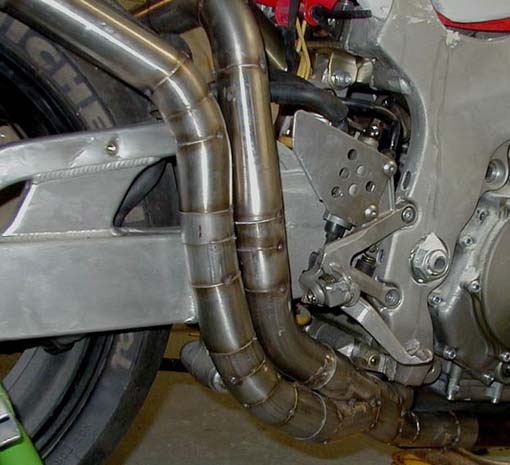

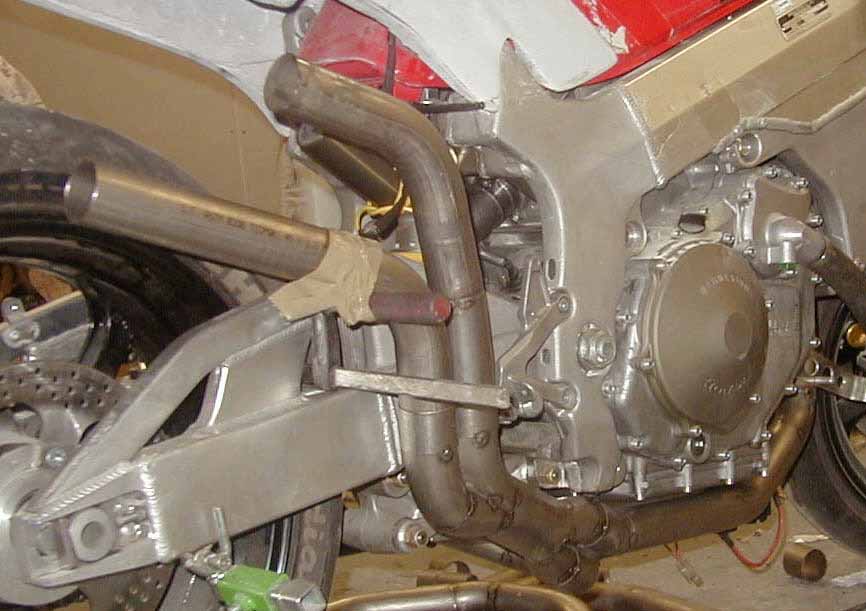

here some Pics of pointed headers:




Now welded:

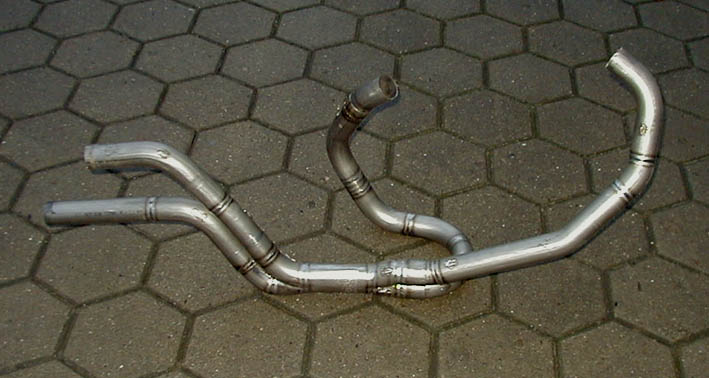

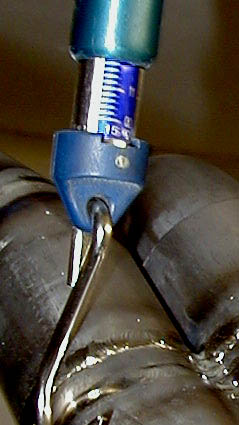

some info:weight of cpl. headers 1860 gr !!! ,ok,excl. Springs.a Ti header 7.JPG (25227 Byte)





a Ti header 5.JPG (49440 Byte)

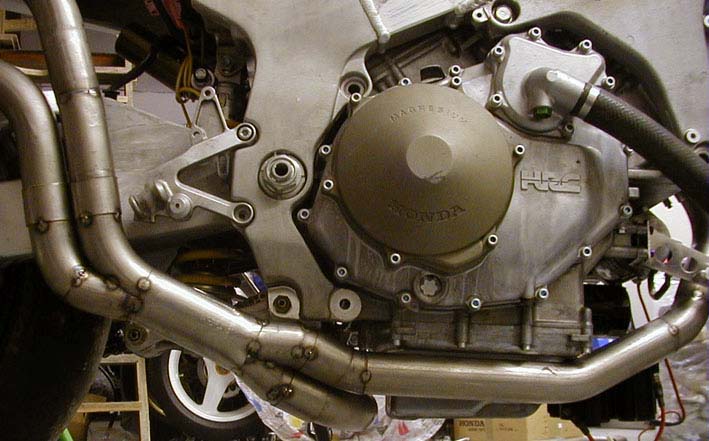

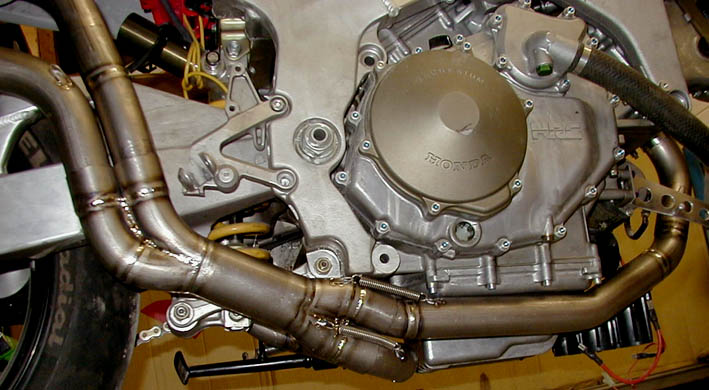

well hey,how does it look!

                                         weldet details:click to enlarge

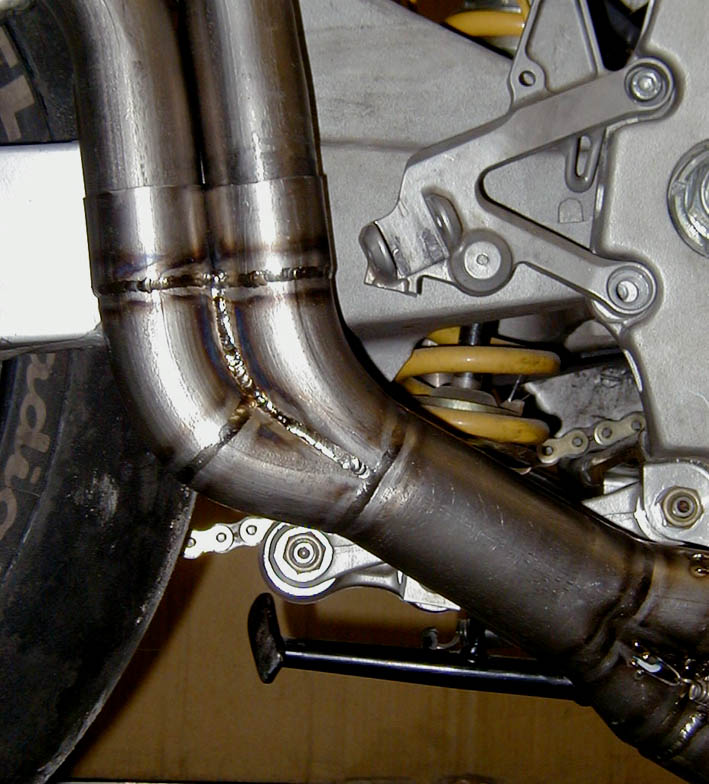

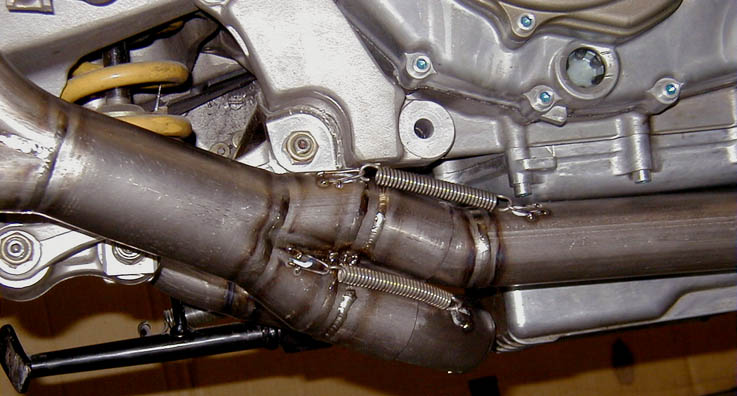

a Ti header 1.JPG (100641 Byte)       a Ti header 2.JPG (62895 Byte)       a Ti header 6.JPG (43072 Byte)       a Ti header 8.JPG (105285 Byte)
