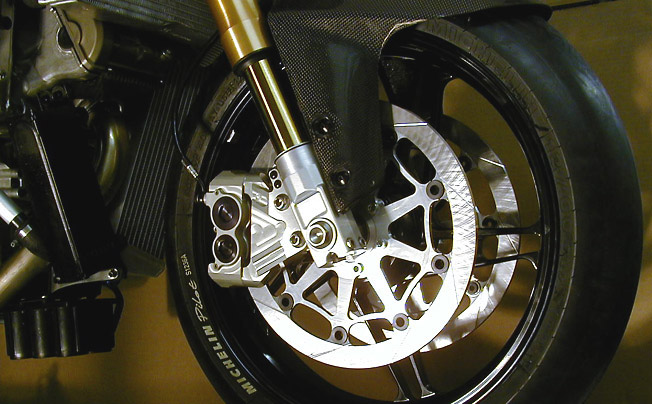

front detail, radial calips,dics 300,wheel forged alloy milled,Rad assy


The right side detail-view :

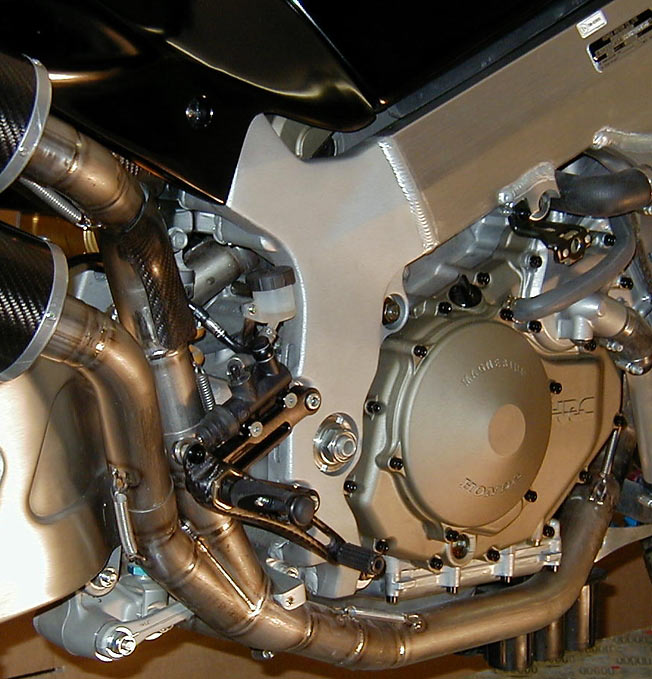

RC51 2002 -The right rearview :Clutch side rearviewQ51.jpg (103417 Byte)

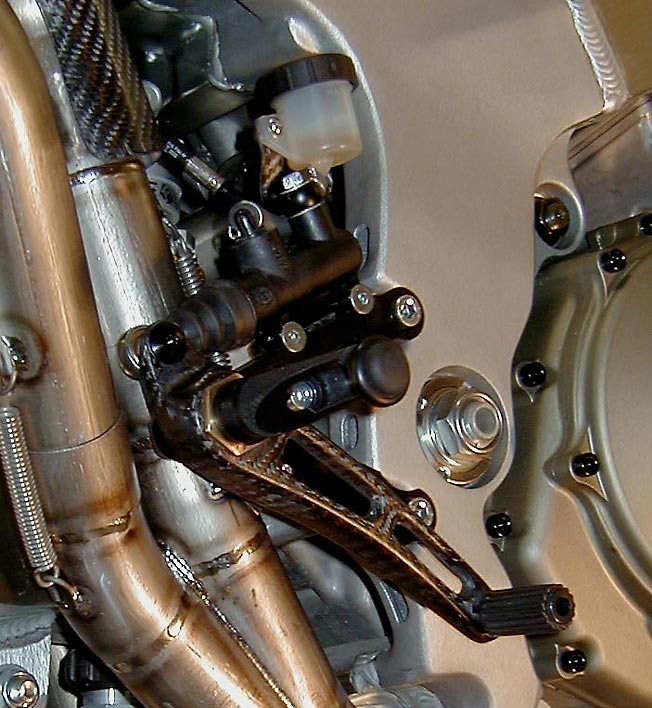

RC51 2002-a detail Pic of rearsets with Carbon footpegs: Clutch side detail rearsets2Q50jpg.jpg (98234 Byte)


This was one the enter Page assorted pics of raw unwelded header work,i think it's a good demonstration if you compare it with the first thumbnail Pic above,also maybe you can re-enact where i've left all the hours,maybe 300 hours for whole rebuilt

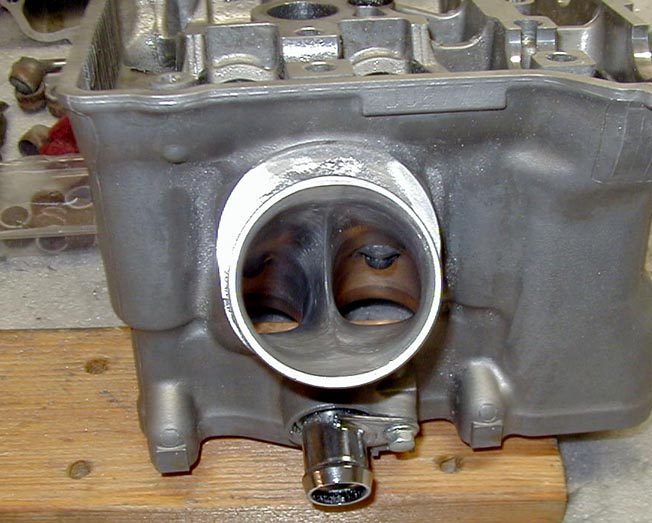

The porting job in progress here,it's really worth the work,I advise to adapt the injection manifold rubbers and the shape of the outlet,because header-gasket won't really match.

     porting Job in progress.jpg (71826 Byte)


  for more Informations: SP2 rebuilt 0 + SP2 rebuilt 1 (30 days rebuilt-report) or go: HOME
